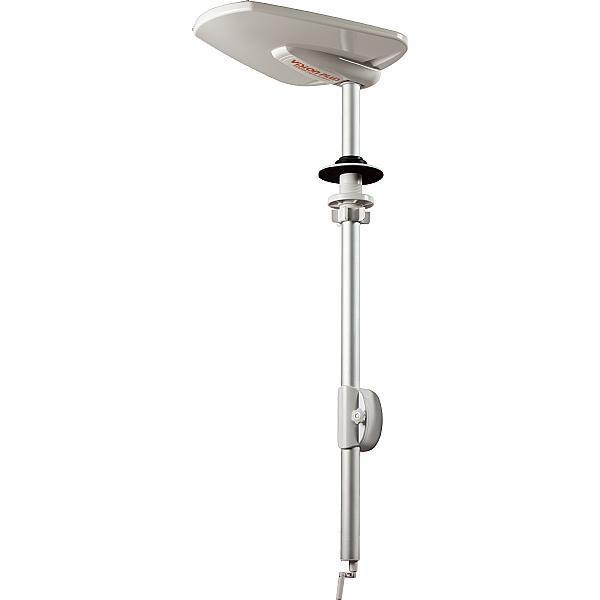

Status 580 Vp5 Directional Antenna – Long Mast

Description

For more than 10 years the
Status 530 TV Antenna has lead the way but as we enter this new Digital
era we have taken up the challenge to develop something which includes a
host of new features which will also allow you to tune in your TV in
seconds – The all new Status 580!

New features:

• Unique integrated TV
  Signal Finder
• Horizontal & Vertical
  Polarisation Indicator
• Low Profile Roof Assembly
• DAB & FM Radio Reception
• Internal FM radio antennas

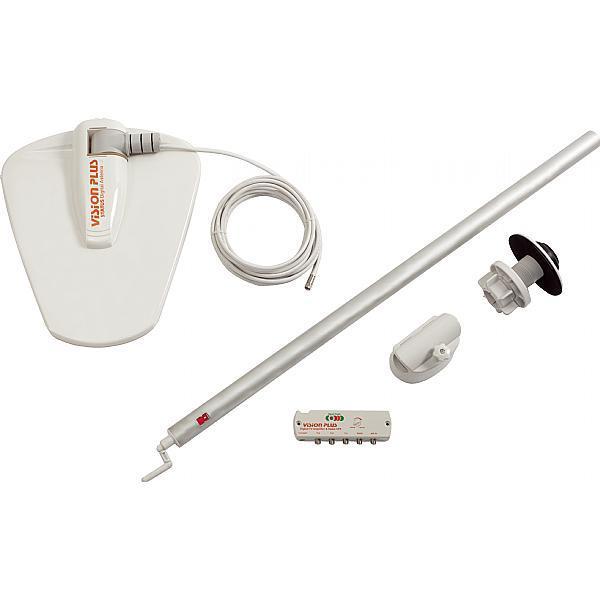

At the heart of this
new antenna system is the Vision Plus VP5 Digital TV Amplifier with
unique integral Signal Finder. With its neat, slim-line design, the VP5
offers the latest in TV / Radio reception technology and features:

• Slim-line compact design
• Digital TV, DAB and FM
  Radio reception
• Dedicated TV Transmitter
  locator – Signal Finder
• LED light power indicator
  with red, yellow and green colours to indicate signal strength
• Variable Gain Control for
  strong and weak signal areas
• 2 TV Connections and 1
  dedicated Radio connection
• 12 – 24V DC Power Input
  connection
• Antenna IN connection
• On / Off Power switch
• 3 year guarantee


Dimensions

• Mast Length 920mm
• Mast intrusion into locker
  875mm inc winding handle (Roof cavity being 3cm approx)
• Antenna dome Installed –
  Length 412mm – Width 348mm – Height 108mm
• Mounting Foot & Gaiter –
  Diameter 122mm – Height 35mm – Roof cavity range 25-50mm

Please note that the roof
mounting assembly kit that is supplied with this product is not suitable
for sloping roofs.
