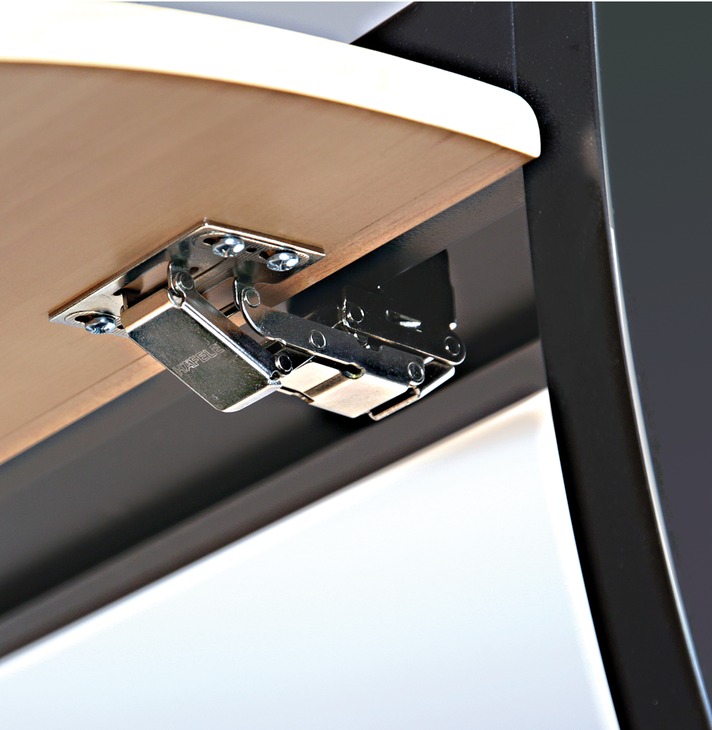

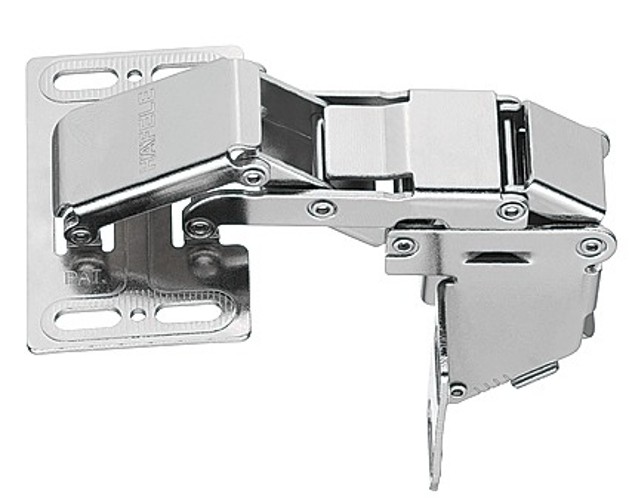

Metal Overhead Hinge Stay

Description

• Automatic closing and
  opening mechanism


• Opening angle: 90 °


• Installation: Screw fixing


• Flap weight: up to 2.1 kg


• maximum flap thickness: 15
  or 16 mm


• For flap width max.: 800 mm


• For flap height max.: 340
  mm

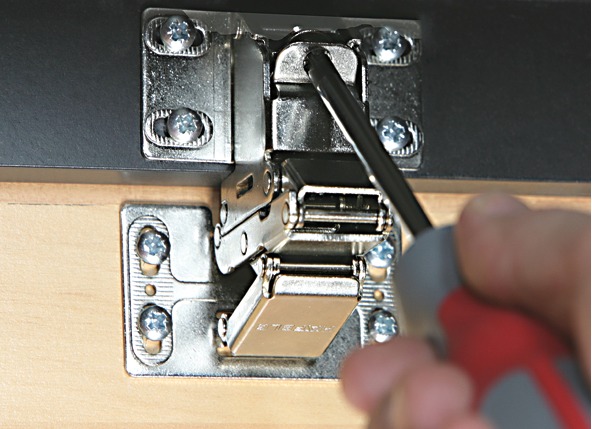

• Side and depth adjustment
  via slots


• The pull is adjustable in
  accordance with the flap weight; different hinge types for different
  flap weights are therefore not required


• Nickel plated Steel
